NOTICE! : PRODUCT EOL. PLEASE VISIT PANEL PCS FOR RELATED PRODUCTS.

10.4" touch Panel PC powered by N2600 1.6GHz fan less embedded computer and IP65 rated ABS plastic front bezel and 10 ~ 30VDC power input.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

FPC5105

10.4inch 800 x 600 industrial panel PC
Resistive-type touch screen monitor
Plastic and IP65 rated front bezel
Atom N2600 1.6GHz fan less embedded computer
Up to 2GB memory (SODIM) and 2.5 inch SATA HD storage device
Dual LAN, 2 COM ports and 4 USB ports
Wide range DC 10~30V power input, option for AC power adapter

Availability: In stock

SKU

FPC5105

Touch Panel PC with 10.4 inch 800 x 600 LCD touch screen, Atom N2600 1.6GHz embedded CPU and fan less PC cooling system, has plastic & IP65 rated front bezel and 10 ~ 30VDC power input, and panel mount ready. Option for external AC power adapter.

Specification

Material: Plastic front bezel with IP65/NEMA 4 rugged protection

LCD panel: Size: 10.4”
Max. Resolution: 800 x 600
Luminance: 400nit
Viewing Angel (H/V): 140° x 120°

Main system: CPU: Atom N2600 1.6GHz processor
Chipset: NM10 Express
RAM: 1 x 204-pin DDR3 SO-DIMM slot (Max. 2GB)
Watchdog timer: programmable WDT from 0 to 255 seconds

Drive Bay: 1 x 2.5 inch drive bay for SATA hard drive or SSD
1 x External CF slot

Connectors: 2 x COM ports, 1 for RS-232/422/485, 1 for RS-232
2 x Ethernet ports, 10/100/1000Mbps
4 x USB 2.0
1 x Audio (Line-out)

Expansion Slot: 1 x mini PCle slot

Touch screen: Resistive-type touch screen monitor

Power supply: DC 10 ~ 30V input
Option for 100~240VAC, 60W power adapter

IP rating: IP65 front panel

Mounting: Panel mount / VESA mount / wall mount
Option for desktop stand

Net Weight: 3.96 lb / 1.8 kg

Dimension: 11.52"(W) x 1.80"(D) x 9.28"(H)

Environmental: Environment Temperature
Operating: 0 to 50 degree C (in airflow condition) / 0 to 45 degree C
Storage: -30 to 80 degrees C
Humidity: 10~95% @40 degree C, non-condensing
Operation Vibration: 2G, 10-500Hz, random for CF

Certification: CE

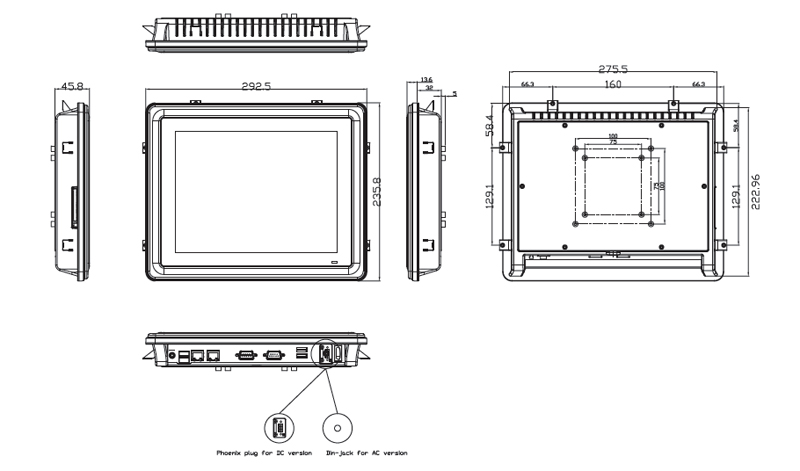

Dimensions

Order Info

FPC5105:
10.4 inch 800 x 600 resistive-type touch screen monitor and Atom N2600 1.6GHz fanless system, up to 2GB DDR3 memory, and IP65 rated ABS plastic front bezel.

NOTICE! : PRODUCT EOL. PLEASE VISIT PANEL PCS FOR RELATED PRODUCTS.

Downloads

Document

Description

Download Link

FPC5105-SP.pdf

Spec Sheet

FPC5105-UM.pdf

User Manual

Configure Now

LCD Touch Screen
At 10.4 inches, the resolution is 800 x 600, 400-nit brightness, and with a viewing angle of 140° x 120°. It is a resistive type touch screen, resulting in low power consumption, resistance to surface contaminants and liquids, and can be activated with virtually any object such as a finger, stylus, and gloved hand.

Rugged Construction Features
The built PC is of plastic front bezel with IP65/ NEMA4 rugged protection. With IP65/NEMA4 rugged protection, it is waterproof and watertight. It is to offer protection against dirt, rain, dust and is ideal for indoor and outdoor use. It provides a degree of protection to personnel against incidental contact with the enclosed equipment.

Fanless Embedded Computer
The CPU type is Atom N2600 1.6GHz, NM10 Express chipset, and DDR-III SODIMM memory. It offers reliable performance and storage space. It supports a 2.5” drive bay for SATA hard drive or SSD and one external CompactFlash slot. Connectors include 2 COM ports (1 for RS-232/422/485, 1 for RS-232), 4 USB 2.0, 2 Ethernet ports, 1 line-out audio port. The expansion slot supports 1 mini PCIe slot. The power supply is 10~30V DC power input with the option for 100-240V AC, 60W power adapter.

Key Features:
- 10.4” Industrial fanless Panel PC
- Atom N2600 1.6GHz Processor
- Plastic and IP65-rated front bezel
- Resistive type touch screen
- Up to 2GB DDR3 memory and 2.5” SATA HD storage device
- 10~30V DC power input, option for 100-240V AC, 60W power adapter
