Stainless steel panel mount monitor comes with a 19 inch 1280 x 1024 industrial LCD with VGA video input, IP65 rated front bezel, stainless steel enclosure, and VESA mount. Option for GFG or resistive type touch screen.

Skip to the beginning of the images gallery

APS9017

APS9115

APS9019

Stainless steel enclosure
Features IP65 rated front bezel
2.36" short depth rugged construction
19 inch 1280 x 1024 industrial monitor
Option for GFG or resistive type touch screen
1 x VGA video port
VESA (100mm) mount ready
Wide range 11~32V DC power input with external power adapter

$1,130.00

Availability: In stock

SKU

APS9019

19" 1280 x 1024 stainless steel panel mount LCD monitor with VGA video input, IP65 rated front bezel, VESA mount, and a wide range 11 to 32V DC power input.

Specification

Material: Stainless steel chassis
IP65 compliant front bezel

LCD Panel: Size: 19 inch
Max Resolution: 1280 x 1024
Brightness: 300
Contrast Ratio (typ) : 1000:1
Viewing Angle (H/V): 160° x 160°
Colors: 16.7M
Signal Input: VGA
Backlight: CCFL
MTBF (hrs): 50,000

Video input: VGA video input

Touch screen (Option): Resistive type 17 inch touch screen monitor
Glass Film Glass 17 inch touch screen monitor

Rear Panel control: OSD membrane switch

Mounting Type: VESA (100mm) mount

Connectors: 1 x VGA port
1 x 3-pin terminal block DC power connector

Power supply: 11~32V DC / Max:32.2W@12V

Weight: 17.64lbs

Dimension: 18.50"(W) x 15.30"(H) x 2.36"(D)

Environmental: Operating Temperature: 0°C to 50°C
Storage Temeprature: -20°C to 60°C
Relative Humidity: 10~90%, @40°C non-condensing
Vibration: 1G peak, 5~500Hz (at random)
Shock: 15G peak acceleration (11ms. duration)/operation

Certification: CE/FCC Class A

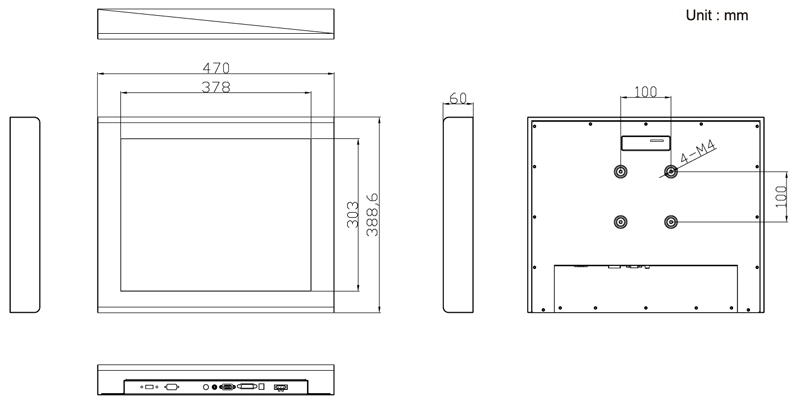

Dimensions

Order Info

APS9019:
19 inch 1280 x 1024 industrial LCD monitor with stainsteel steel chassis & IP65 rated front panel. VGA video input.Price start from: $1,130.00

Downloads

Document

Description

Download Link

APS9019-SP.pdf

Spec Sheet

APS9019-UM.pdf

User Manual

Configure Now

APS9019

19 inch 1280 x 1024 industry monitor
VGA video input
option for DVI video input
Stainless steel rugged enclosure
IP65 rated front bezel
VESA (100mm) mount ready
Option for touch screen monitor
11 to 32VDC power input

Starting at:
$1,130.00

APS9019

$1,130.00

LCD monitor

19" 1280 by 1024 LCD screen

Video Input

VGA

DVI + $50.00

Qty:

PRODUCT DESCRIPTION
A waterproofed panel mount monitor with a 19 inch 1280 x 1024LCD monitor. The monitor enclosure features easy-to-clean stainless steel construction that is corrosion-resistant. APS9019 features IP65 rated front bezel, ideal for diverse applications in harsh environments where hygiene is essential, such as the food industry. The LCD supports a 1280 x 1024 display resolution and delivers up to 300 nits of brightness, 1000:1 contrast ratio, and 16.7M colors. Optional features include resistive or GTG touch screen. The onboard video input offer direct-VGA signal transmission allowing a regular VGA control card to be used. The on-screen display function provides users the ability to adjust images with ease. The monitor enclosure has VESA mounting patterns and can be used on wall, arm and panel mounting applications. The embedded power input supports wide voltage power input from 11V to 32V DC to meet the requirements of unstable electricity environments. Furthermore, APS 9019 has been proven to work well in environments with temperature ranging from 32°F to 122°F (0°C to +50°C).

APS9019: 19” Stainless Steel Panel Mount Monitor 19” industrial panel mount LCD that supports 1280 x 1024 high resolutions, IP65 rated front bezel with rugged stainless steel enclosure, VGA video input, 11-32V DC power input. Option for resistive or GFG touch screen monitor.

REFERENCES
What is an IP rating?
IP ratings are standards for electrical enclosures defined by the IEC (International Electrotechnical Commission). The rating refers to the degree of protection against water and dust provided by a computer's enclosure. The IP rating is expressed as a two-digit number. The first number designates protection from solids, while the second number designates protection from liquids.

What is a mounting solution?
A mounting solution is a collection of different kinds of mounting methods that can help you to know how to mount your product correctly and rapidly.

Stainless Steel Waterproof Panel Mount Monitor Series
High-performing stainless steel industrial panel mount monitors available in sizes ranging from 15 inches to 19 inches. These units feature an easy-to-clean stainless construction that is corrosion-resistant, making it a perfect solution for food and pharmaceutical applications.
