Military-grade panel PC with a 15 inch 1024 x 768 1000-nit high brightness touchscreen monitor and a fully IP66 rated anti-corrosion aluminum housing with MIL-STD-810G compliance. The PC is powered by the 6th generation Intel Core i7-6600U 2.6GHz CPU and supports dual LAN, HDMI output, and COM ports. Options are available for optical bonding, GPS module, front IP rated USB ports, speakers, and AC power adapter.
15

PCM8215

17

PCM8017

PCM8315

  • Fully IP66 rated anti-corrosion aluminum housing
  • 15 inch 1024 x 768 LED backlight monitor
  • 5-wire resistive type touch screen monitor
  • 1000-nit high brightness LCD panel
  • 6th generation Core i7-6600U 2.6GHz CPU
  • 1 x HDMI output, Dual LAN, 2 x COM, 2 x USB
  • MIL-STD-810G vibration, shock, and temperature
  • 9~36V DC power input, option for AC power adapter
$4,375.00
Availability: In stock
SKU
PCM8315
15" 1024 x 768 military-grade panel PC with the Core i7-6600U 2.6GHz CPU, resistive type touchscreen, fully IP66 rated enclosure, and MIL-STD-810G testing standards.
Material
Anti-corrosion aluminum housing
Full IP66 rated rugged enclosure
LCD panel
Size: 15 inch
Resolution: 1024 x 768
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 700:1
Viewing Angle (H/V): 160° x 140°
Backlight: LED
Colors: 16.2M (8-bits/color)
Touch Screen
5-wire resistive type touch screen monitor
System
CPU: 6th generation Core i7-6600U 2.6GHz
Chipset: SoC Integrated
Memory: DDR4L 2133Mhz 8GB, Max. 16GB
Storage: mSATA SSD 128GB, Max. 512GB
Ethernet Chipset: i219 LM Ethernet Connection
Watchdog: 65535 levels, 1~65535 sec
Video Port
1 x HDMI output
Speaker (Option)
2 x 2W speakers
GPS Module (Option)
1 x GPS module
Optical Bonding (Option)
Optical Bonding
Connectors
2 x RJ45 GbE LAN
1 x HDMI
2 x USB
2 x RS-232
1 x 9~36V DC input
2 x 2W speakers (optional)
2 x front IP67 USB ports (optional)
OSD Buttons
On/Off, Reset buttons
System Indicator
1 x Power LED, 1 x HDD LED
EMI Proof
Anti-EMI filter
Power Supply
9 to 36V DC power input
Option for external AC power adapter
Mounting
VESA or flush mount
Weight
19.84 lb / 9 kg

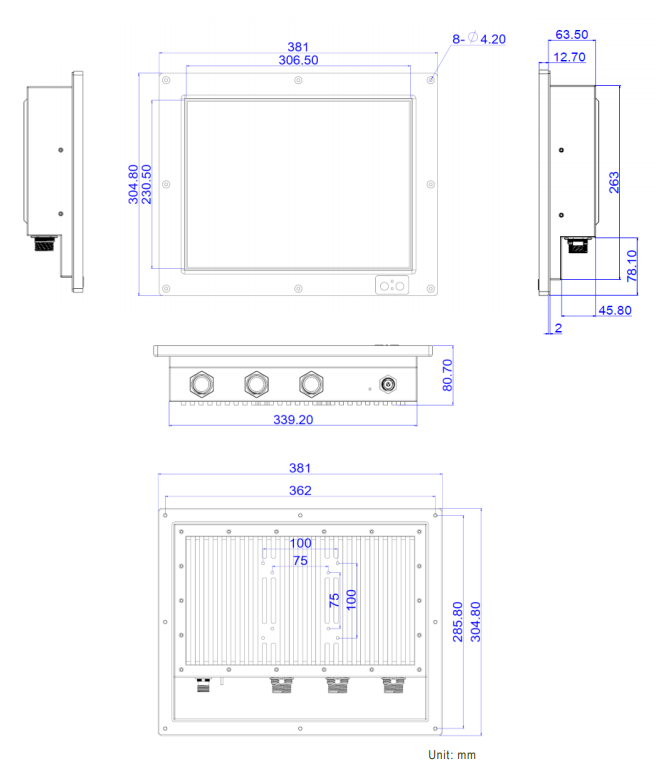

Dimension
15.0"(W) x 3.18"(D) x 11.97"(H)
Environmental
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 80°C
Relative Humidity: 5~95%, non-condensing
MIL-STD-810G vibration, shock, & temperature

PCM8315:
15 inch 1024 x 768 1000-nit high brightness military-grade panel PC, Resistive type touchscreen, 6th generation Intel Core i7-6600U 2.6GHz CPU, 8GB memory, 128GB SSD, HDMI output, 9~36VDC power input, fully IP66 rated anticorrosion aluminum housing, MIL-STD-810G compliance.

Document
Description
Download Link
file iconPCM8315-SP.pdf
Spec Sheet
file iconPCM8315-PIN.pdf
Pin Assignment
